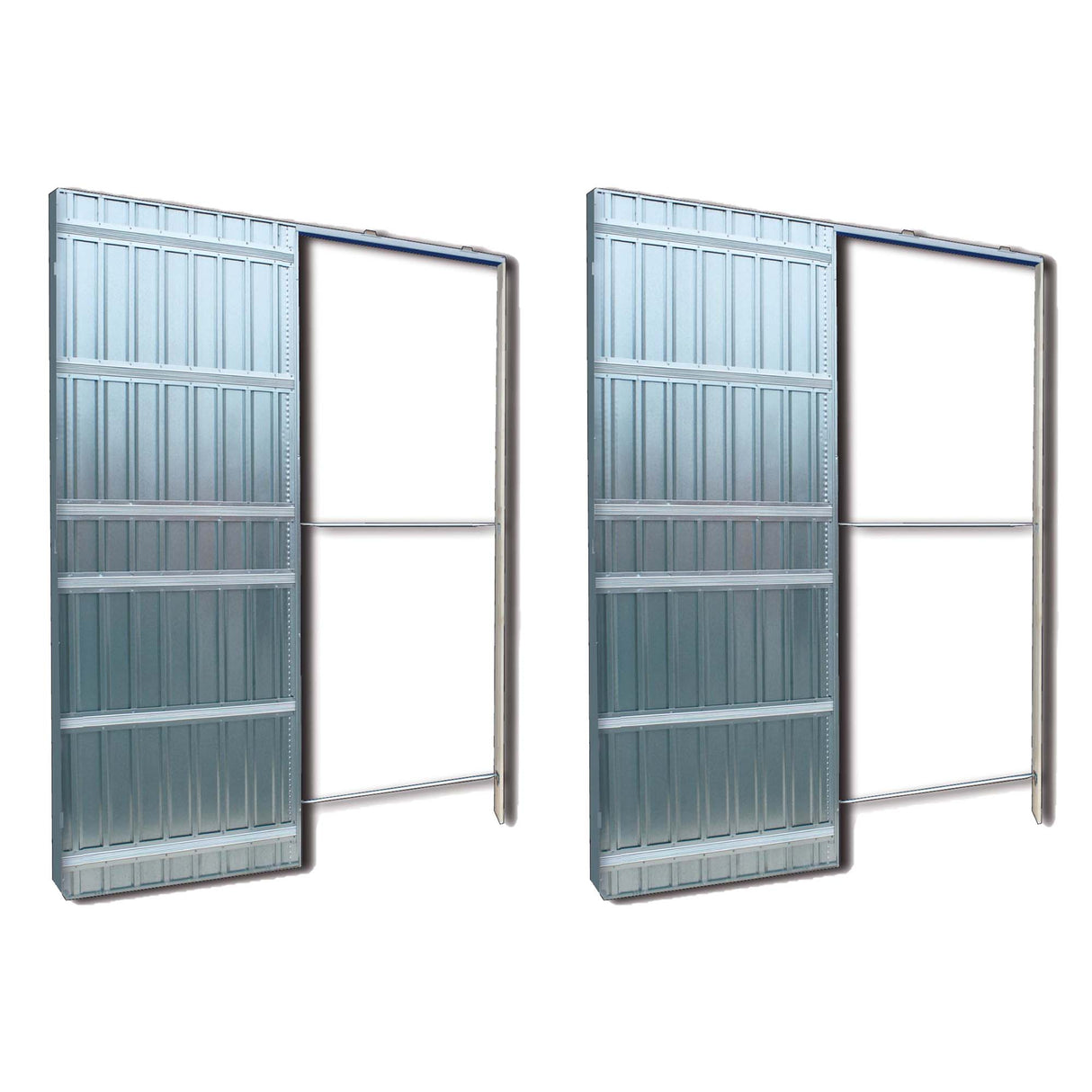

The Counterframe Doortech Double Door Plasterboard h2100 has an internal seat equal to 56/70 mm for plasterboard walls with a nominal finished thickness equal to 100/125 mm.
Counterframe Doortech Double Door Plasterboard h2100: Strength and Reliability for Sliding Solutions
The Counterframe Doortech Double Door for Plasterboard represents an ideal solution for the installation of double-leaf sliding doors on plasterboard walls, guaranteeing resistance, precision and ease of assembly. With an internal seat of 56/70 mm and a range of up to 100 kg, this counterframe offers a solid structure, ensuring functionality and durability. Perfect for residential and commercial environments, the 10 year warranty on the sliding system offers safety and peace of mind over time.
Subframe Features Doortech
• Versatility of Sizes: Compatible with double openings from 1200 to 2400 mm in width and a maximum height of 2100 mm. Designed for drywall walls with a nominal finished thickness of 100/125 mm.
• Aluminum Sliding Guide: Made of 6060 alloy, with a capacity of 100 kg and a weight of 0.83 kg/m, the guide ensures smooth and silent sliding. Includes PVC lateral spacers for easy insertion into the plasterboard structure.
• Durable Structure: The side panels in galvanized sheet metal (thickness 5/10 mm) with horizontal reinforcements and a reinforced lower base ensure maximum rigidity and robustness for a stable and safe installation.
Subframe Technical Specifications
• Side Flanks: Corrugated galvanized sheet from 5/10 mm, with the step of the Greeks from 100mm to increase stiffness.
• Bottom Base and Top: Thickness of 8/10 mm with provision for fixing to the ground and integrated guide.
• Rear Panel: Galvanized sheet metal from 5/10 mm equipped with fixing bridges.
• Front Mask: Removable for easy installation of plasterboard panels.
Cart Kit Included
• Four Wheel Carts: Pair of trolleys with a maximum load capacity of 100 kg, with ball bearing pivot for smooth, quiet movement.
• Suspension Plates: Made of galvanized sheet metal from 30/10 mm for safe assembly of the door.
• Stop Stop: Made of nylon, with locking screw and rubber for a secure fit.
• Door Guide Nose: Complete with shims to adjust the height from the floor.
Why Choose It?
The Counterframe Doortech Double Door Plasterboard h2100 is the perfect choice for those looking for a reliable and easy to install sliding system for double sliding doors. The reinforced structure and the included trolley kit make it an ideal solution for environments where a high level of precision and durability is required. Thanks to the 10-year guarantee on the sliding system, Doortech offers maximum safety and peace of mind.
Where to buy it?
You can buy the Counterframe Doortech Double Door Plasterboard h2100 at EmmetiStore, available both in physical stores and directly on the official online site.
