Multi-process welding machine Helvi Puma 298 it's a multifunction inverter welder designed to offer high performance and maximum reliability in the processes of MIG/MAG, TIG and MMA (rutile only).

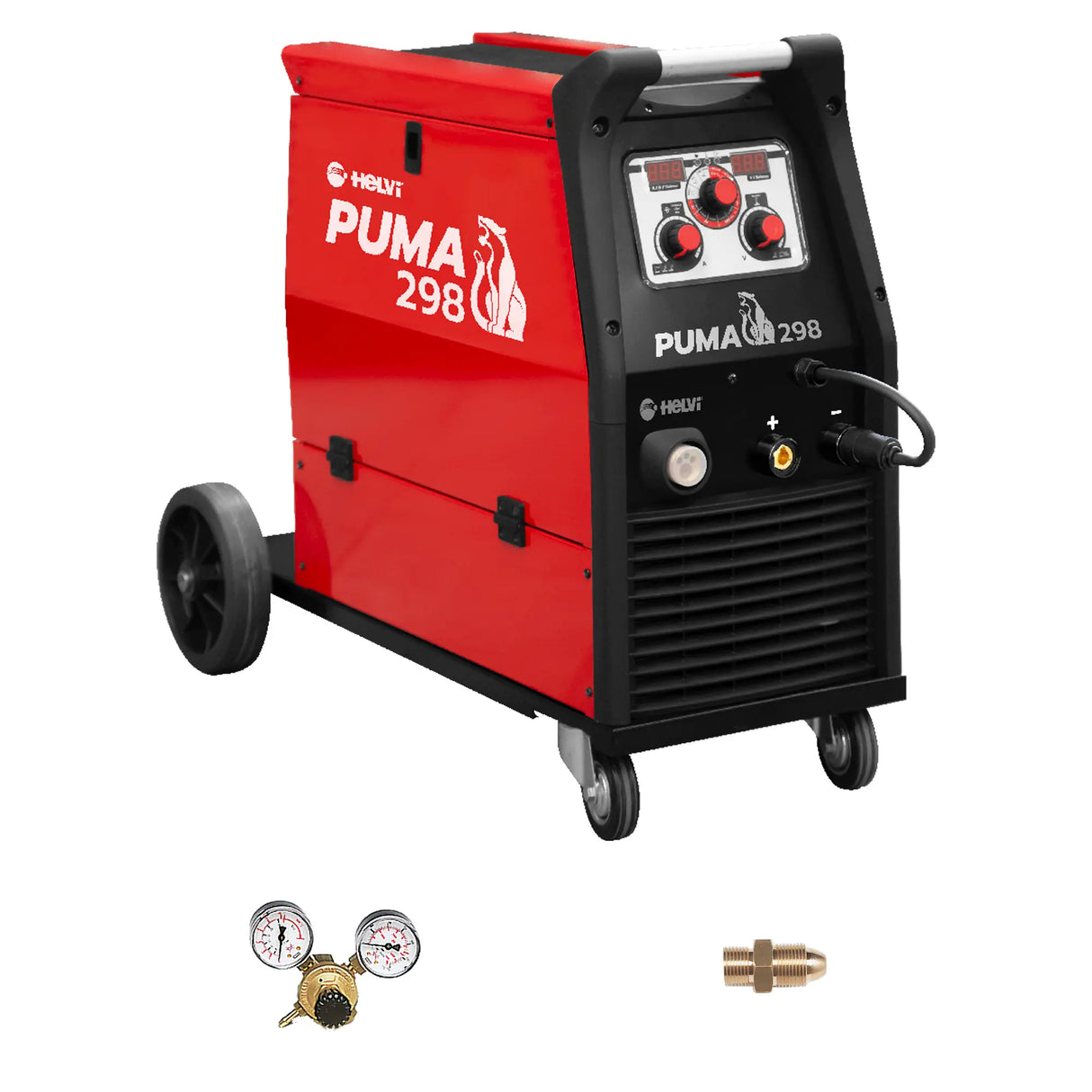

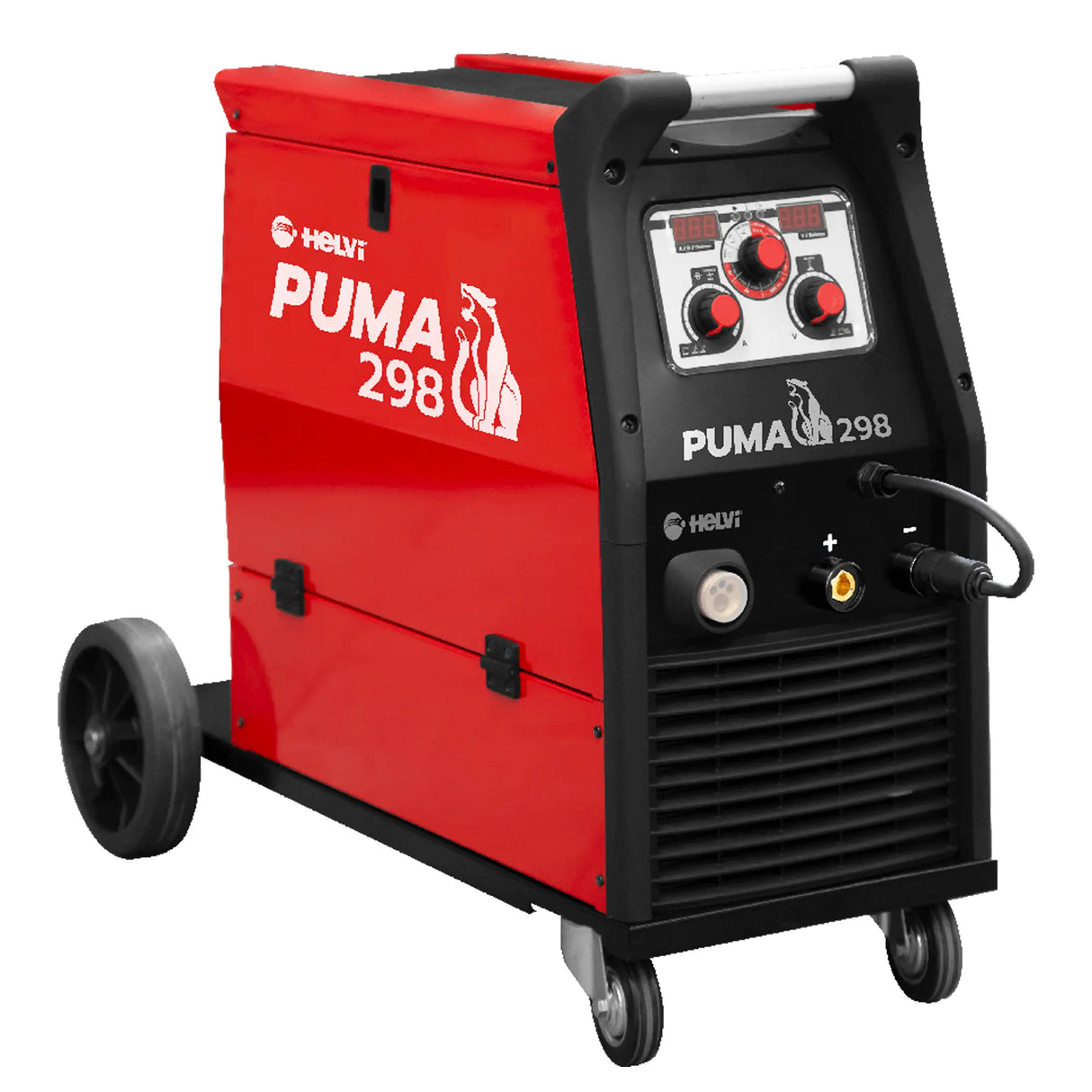

Multi-process welding machine Helvi Puma 298 + 300A Kit: Power and Versatility for Professional Applications
There Helvi Puma 298 it's a multifunction inverter welder designed to offer high performance and maximum reliability in the processes of MIG/MAG, TIG and MMA (rutile only). Thanks to the microprocessor control, assures exceptional arc stability, precise adjustment and a clean, spatter-free weld, making it ideal for bodywork, carpentry and industrial maintenance.
Advantages of the Welding Machine Helvi Puma 298
✔️ Microprocessor Control: Optimize welding parameters for a upper arch stability and perfect results.
✔️ Manual and Synergic Mode (MIG): Allows custom or automatic settings, adapting to the operator's needs.
✔️ Ramp Up Adjustment: Automatic thread matching for a soft and burr-free trigger.
✔️ Digital Display: Clear and immediate display of voltage, current and welding parameters.
✔️ Wire Spool Holder 200mm or 300mm: Greater flexibility for different types of processing.
✔️ Integrated Cylinder Holder: Stable structure for practical and safe use with shielding gas.
✔️ Three-phase operation (400V): Guarantees constant power and high performance for industrial uses.
Technical Specifications
• Supply Voltage: 400V ± 10% - 50/60Hz (Three-phase)
• Power at 60%:
• MIG: 6 kW
• MMA: 6 kW
• TIG: 5.8 kW
• Open Circuit Voltage:
• MIG: 35V
• MMA: 54V
• TIG: 54V
• Welding Current Regulation:
• MIG: 30 - 290A
• MMA (Rutile Only): 20 - 250A
• TIG: 10 - 290A
• Duty Cycle (40°C):
• MIG: 290A @ 35% | 220A @ 60% | 170A @ 100%
• MMA: 250A @ 35% | 190A @ 60% | 150A @ 100%
• TIG: 290A @ 35% | 220A @ 60% | 170A @ 100%
• Supported Materials:
• Steel: Ø 0.8 - 1.0 mm
• Stainless Steel: Ø 0.8 - 1.0 mm
• Aluminum: Ø 1.0 - 1.2 mm
• Flux Core: Ø 1.0 - 1.2 mm
• CuSi3 Brazing: Ø 0.8 mm
• Electrode Diameter (MMA - Rutile Only): Ø 1.6 - 5 mm
• Insulation Class: H
• Degree of Protection: IP23S
• Machine Dimensions: 450 x 840 x 710 mm
• Package Dimensions: 365 x 895 x 650 mm
• Net Weight: 35 kg
Accessories Included in the 300A Kit
✔️ 300A MIG Torch: Designed for heavy duty work high intensity and long lasting.
✔️ Ground Cable with Clamp: Ensures a stable and secure connection.
✔️ Drag Roller: Compatible with wires of Ø 0.8 - 1.0 mm for precise advancement.
✔️ Gas Pipe Kit: Necessary for the correct operation with shielding gas.
Why Buy the Welder Helvi Puma 298?
If you need a powerful, versatile three-phase welder suitable for industrial processes, the Helvi Puma 298 is the ideal choice. Thanks to the advanced technology, ease of use and multi-process mode, offers precise and reliable welding for every type of professional application.
Where to buy it?
You can buy the Welding machine Helvi Puma 298 + Kit 300A in the shops EmmetiStore or directly online on the official website EmmetiStore, taking advantage of exclusive offers and a wide range of professional welding equipment.
