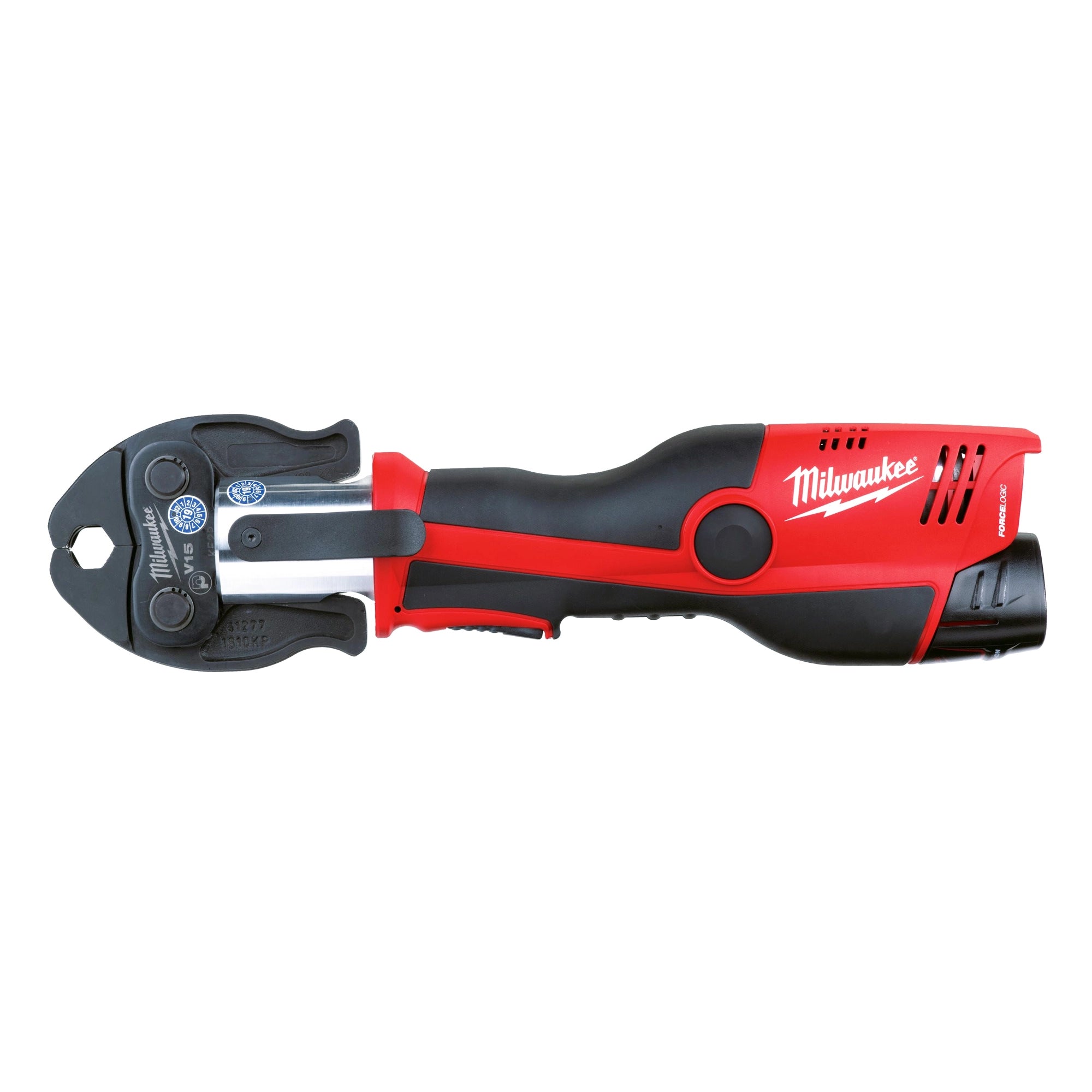

Pressing machine Milwaukee M12 HPT-202C SET 12V 2Ah

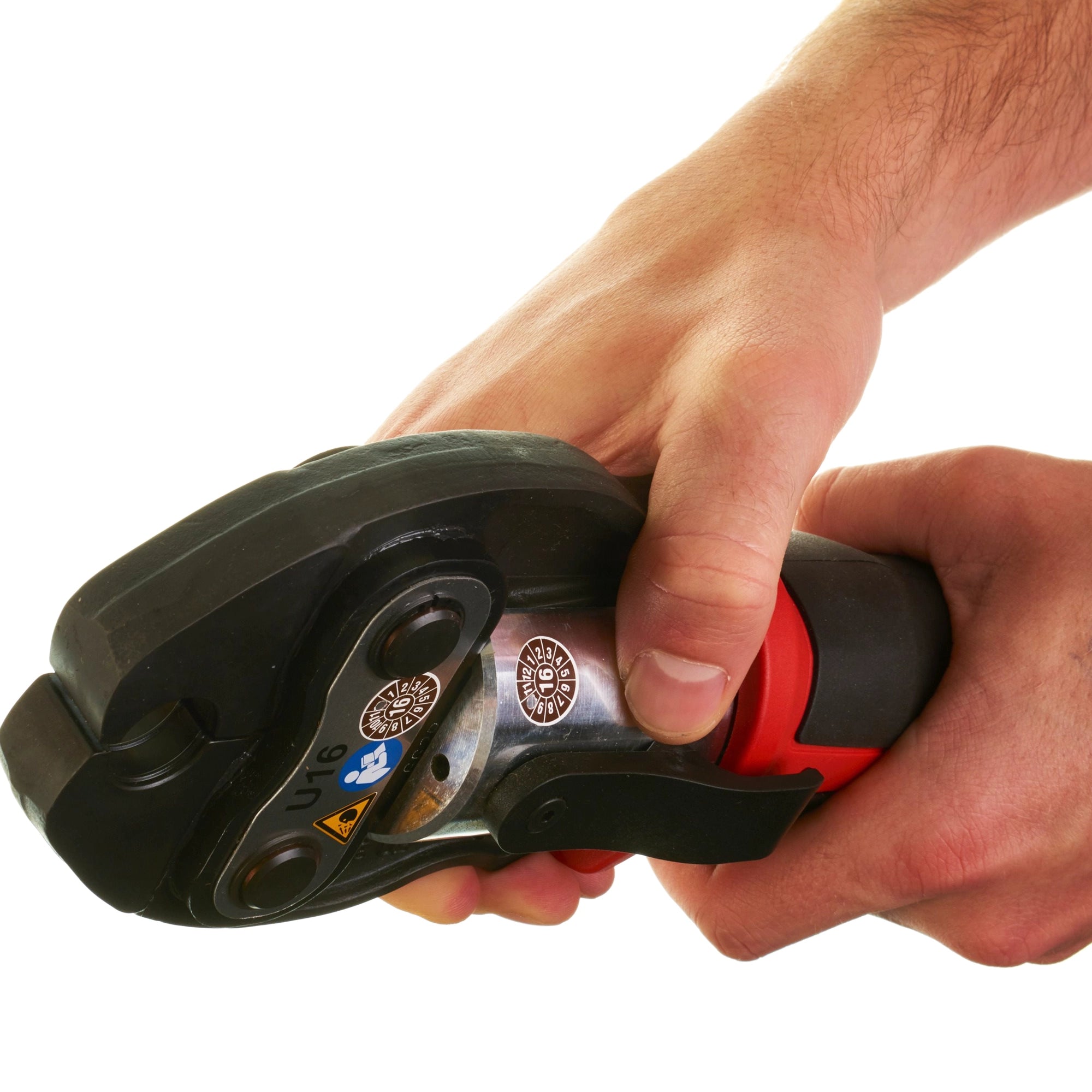

Pressing machine Milwaukee M12 HPT-202C SET 12V 2Ah the lightest and most compact press on the market: only 1.8 kg of weight for greater comfort. Patented jaw usable with one hand.

• Provides visual confirmation of a quality connection

• Excellent pressing range, up to 35 mm in metal and 40 mm in composite pipes

• The tool checks the battery charge before starting to press and, if the charge is not sufficient, it does not start to press so as not to leave the job unfinished.

• Maintenance Intervals: Advanced electronics count cycles and notify users when the instrument reaches calibration intervals

• 4-step battery status indicator

• Service: Up to 40,000 pressing cycles before maintenance. The tool continues to operate even beyond 40,000 cycles

• REDLINK™ overload protection electronics in the tool and battery pack ensure longer system life

• Monitoring of individual battery cells for even battery pack consumption and greater autonomy

• Battery charge status indicator

• The REDLITHIUM™ battery offers superior pack construction, electronics and consistent performance to deliver more run time and more work over the life of the battery

• 12V Platform: Works with all batteries MILWAUKEE M12

TECHNICAL SPECIFICATIONS

• Battery charging time 40 min

• Battery type Li-ion

• Voltage (v) 12

• Pressing cycles 40,000
• Pressing force (kn) 19

• Max. Capacity on metal (mm) 35

• Max. Capacity on plastic (mm) 40

• Weight with battery pack (epta) (kg) 1.8 (m12 b2)

• Uncertainty of sound power level (db(a)) 3

• Uncertainty of sound pressure level (db(a)) 3

• Sound power level (lwa)(db(a)) 86.5

• Sound pressure level (lpa)(db(a)) 75.5

• Vibration uncertainty (m/s²) 1.5

• Vibration level (m/s²) <2.5

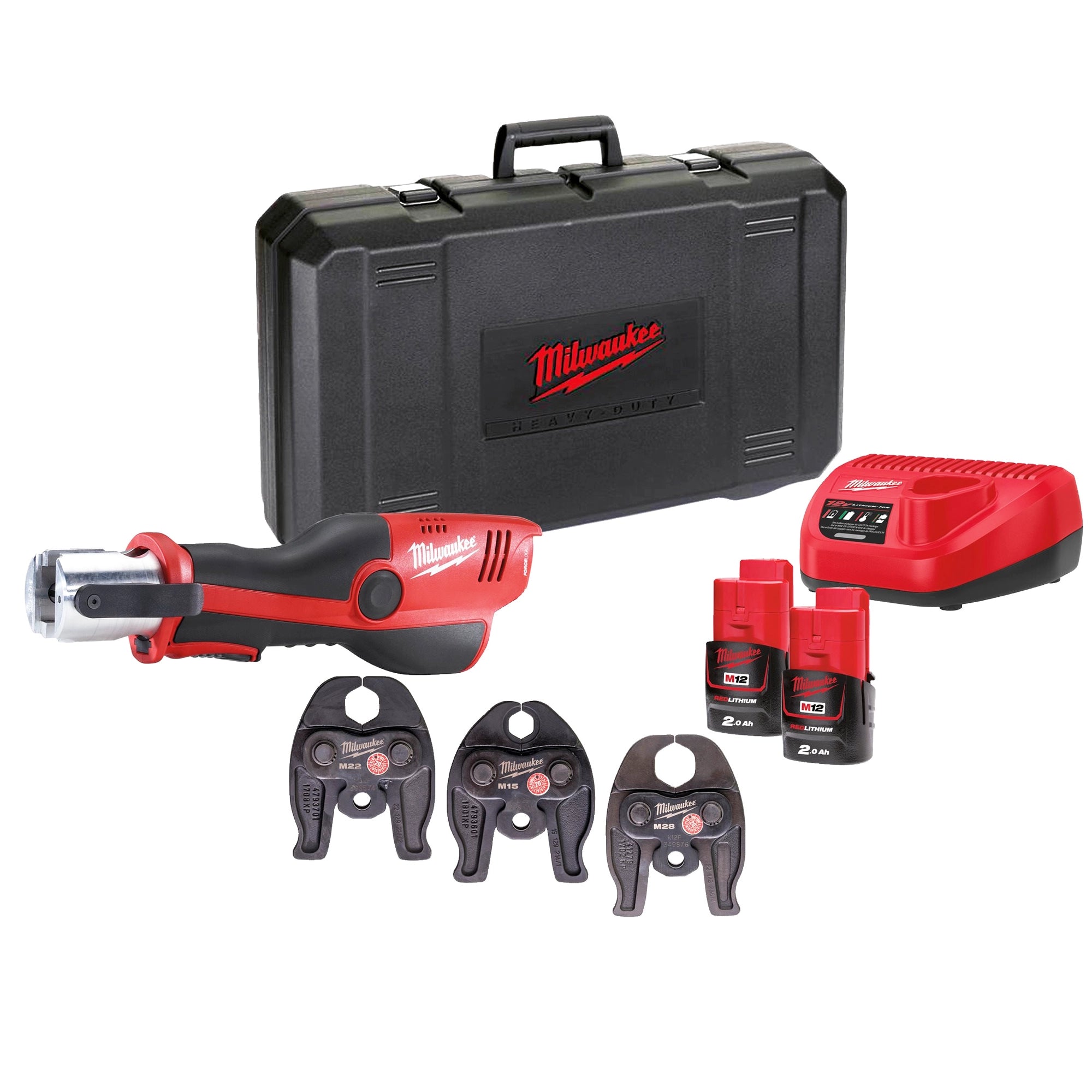

M12 HPT-202C M-SET

• Pressing brand compatibility Geberit: Mapress, VSH: XPress, Eurotubi, Raccorderie, Rubinetterie, Sanha: Nirosan, Pegler Yorkshire: XPress

• Tube diameter 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 26mm, 28mm, 32mm, 35mm

• 3 jaws M (15/22/28 mm)

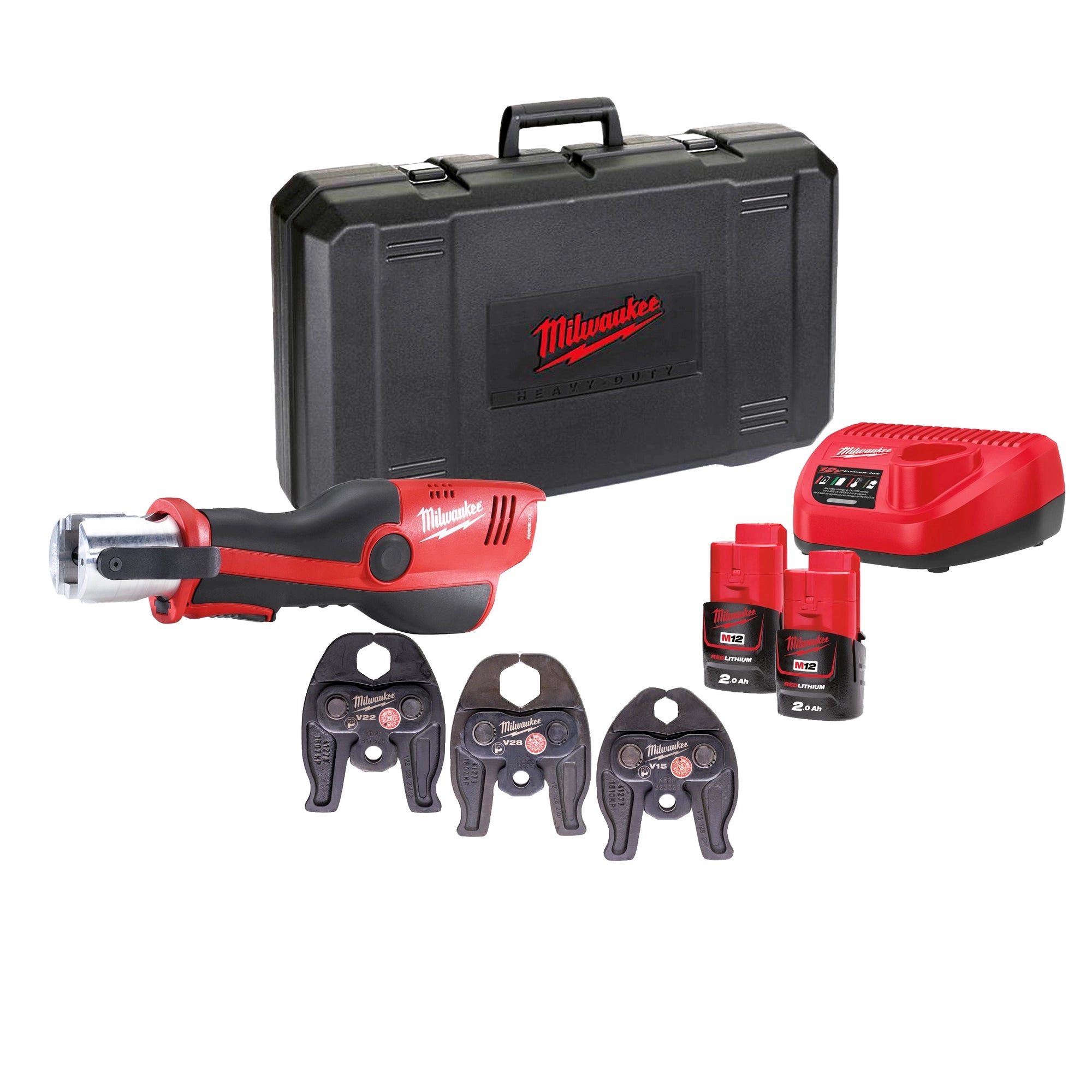

M12 HPT-202C V-SET

• Brand compatibility pressing Viega, Comap, IBP, Sanha: Nirosan
• Pipe diameter 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 26mm, 28mm, 32mm, 35mm
• set with 3 V-jaws (15/22/28 mm)

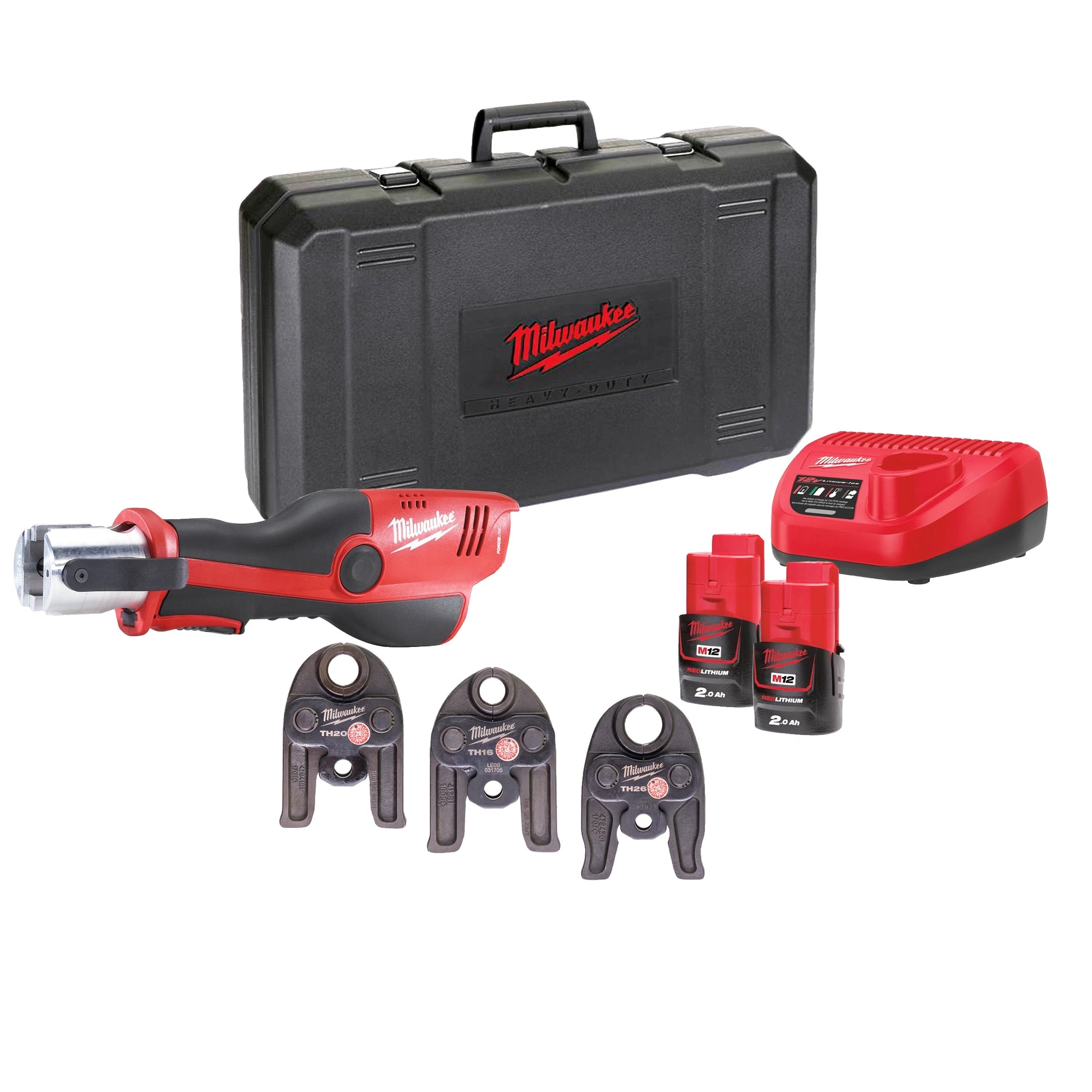

M12 HPT-202C TH-SET

• Brand compatibility pressing ALB, Comap, Frankishe, Henco, IPA, Sanha: Nirosan, Tiemme
• Pipe diameter 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 26mm, 28mm, 32mm, 35mm
• set with 3 TH jaws (16/20/26 mm)

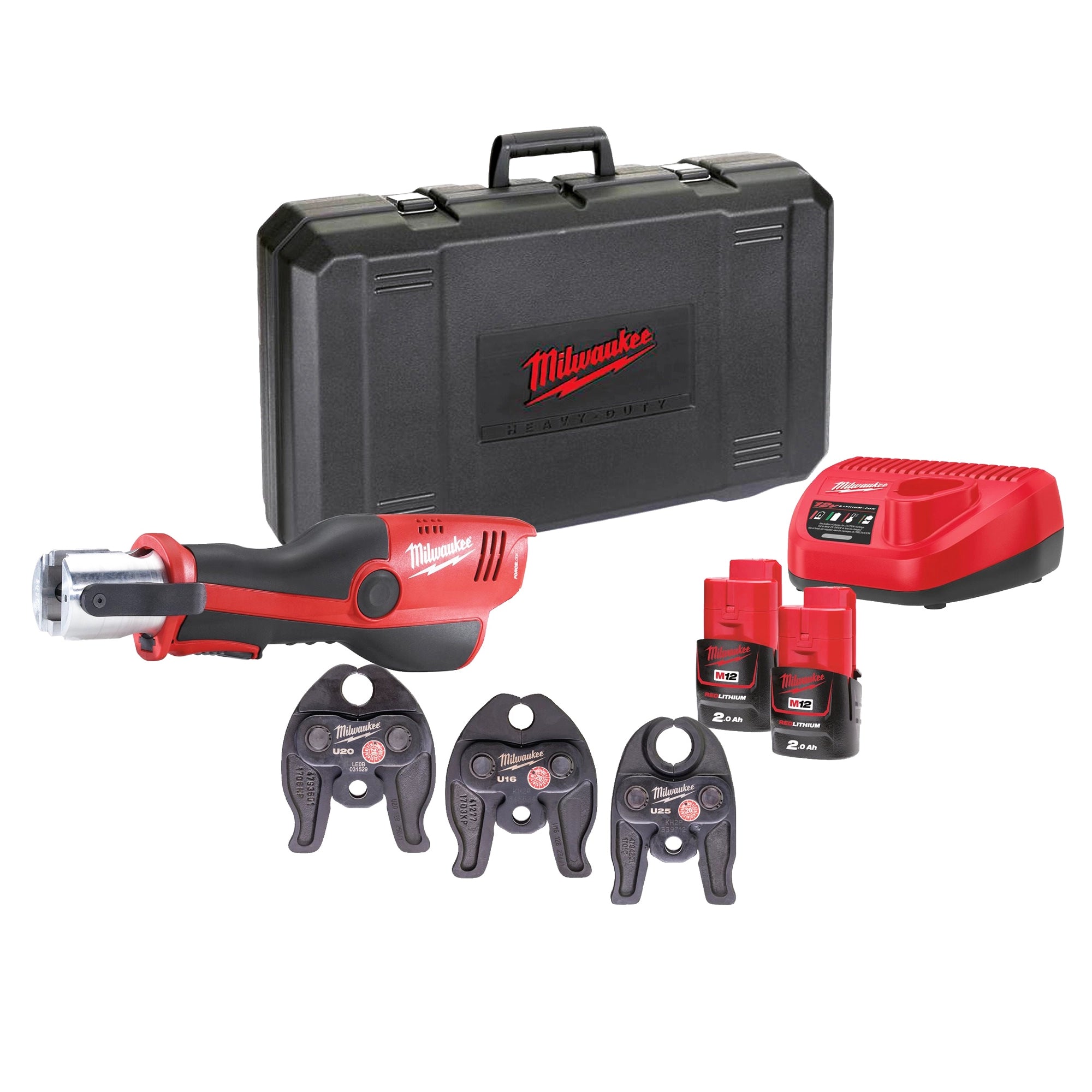

M12 HPT-202C U-SET

• Brand compatibility pressing ALB, Uponor: Unipipe, Airpipe, Kann: Kann-therm, Wavin: Press-System, Frankische: Alpex F50 Profi, DW Verbundrohr: Multitube, IBP: >B
• Pipe diameter 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 26mm, 28mm, 32mm, 35mm
• set with 3 U jaws (16/20/25 mm)

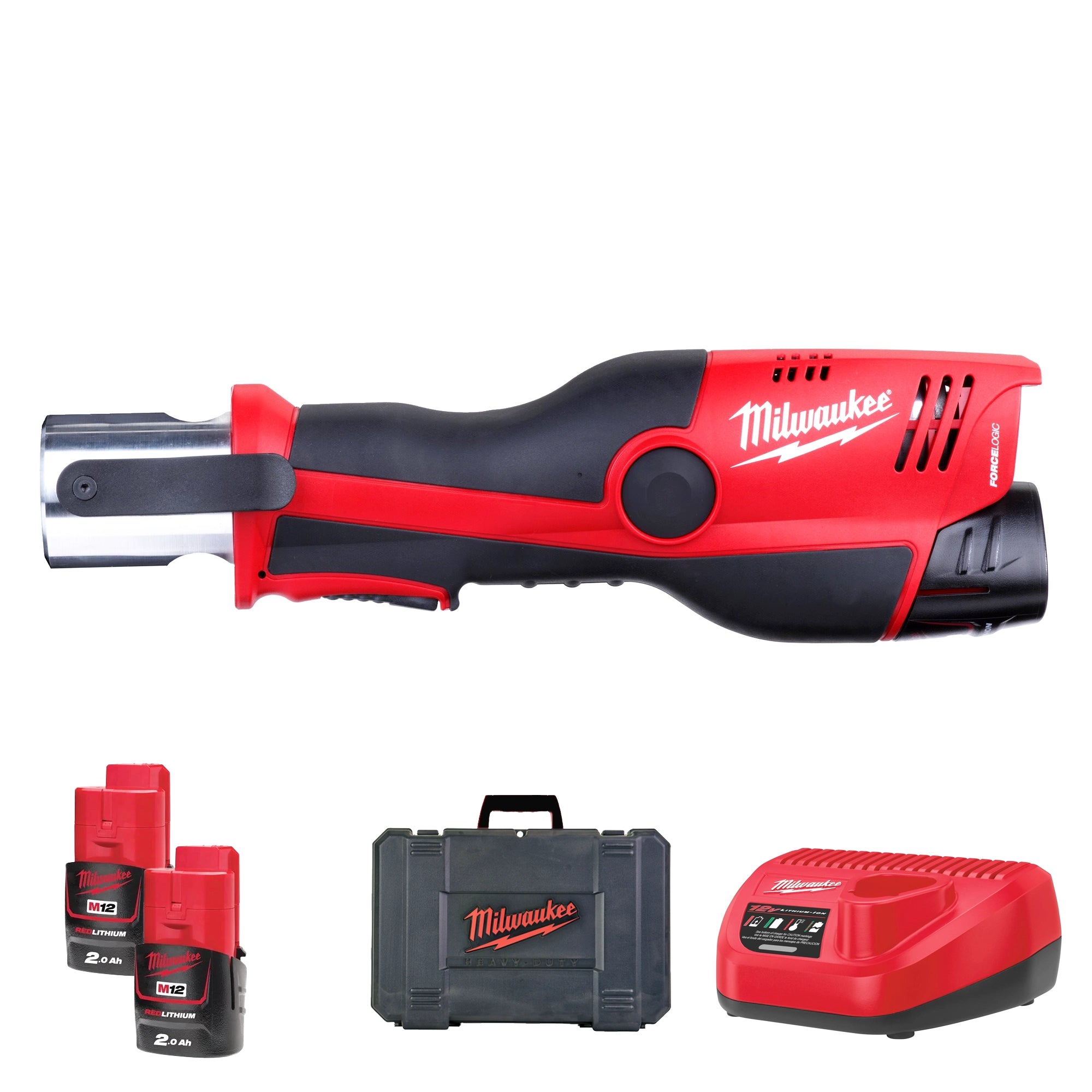

ACCESSORIES SUPPLIED

• 2 x M12 B2 Battery Pack
• C12 C Charger
• set of 3 jaws
• Briefcase
